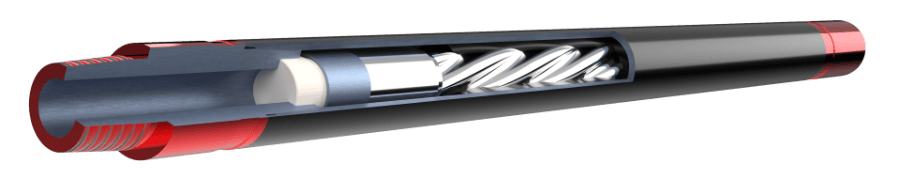

The TEC Alpha Reach packs a bigger punch in a smaller package. Utilizing a proprietary rotary valving system, the Reach is expertly tuned to deliver optimum harmonics across the broad spectrum of high flow rates typified by modern milling and well cleaning operations with a reduced pressure delta across the tool.
Technical Specifications
| OD | 2.88″ | 73.0mm | 3.13″ | 79.4mm | 3.38″ | 85.7mm |
| Tensile Yield | 133,000 lbf | 59,164 daN | 142,000 lbf | 63,167 daN | 254,000 lbf | 112,989 daN |
| Torsional Yield | 2,775 ft-lbs | 3,000 ft-lbs | 3,500 ft-lbs |
| Flow Rate | 5 BPM | 814 LPM | 6 BPM | 954 LPM | 6 BPM | 954 LPM |
| Pressure Drop | 1,160 psi | 8 MPa | 1,160 psi | 8 MPa | 1,160 psi | 8 MPa |
| Operational Frequency | 3 – 10 Hz | 2 – 5 Hz | 2 – 5 Hz |
| Length | 1.20m | 47.0″ | 1.55m | 61.1″ | 1.55m | 61.1″ |
| Connection | 2-3/8 PAC | 2-3/8 REG | 2-3/8 REG |
| MUT | 2,800 ft-lbf | 3,450 ft-lbf | 4,500 ft-lbf |
Alpha Infinite
The Alpha Infinite builds on the success of the Alpha Reach product line by application of our existing internally developed valving technology to generate constructive interference between competing wavelengths in the tool. The result is the largest impact a single tool has ever delivered while achieving what competitors have struggled to achieve – a manageable pressure delta that permits continued high pump rates without inducing high pressure cycling of the coil workstring.
Design Features
- Precision engineered for the industry’s hardest hitting impact
- High solids tolerance for versatility in fluid systems
- Optimized performance at high flow rates
- Extensive redundancies to maximize longevity
Technical Specifications
| Tool OD | 3.13″ | 79.4mm |
| Tensile Yield | 133,000 lbf | 59,164 daN |
| Torsional Yield | 2,775 ft-lbs |
| Flow Rate | 5 BPM | 814 LPM |
| Pressure Drop | 1,700 psi | 11.7 MPa |
| Operational Frequency | 2-10Hz |
| Length | 120″ | 3.05m |
| Connection | 2.38″ REG |
Alpha MAXX
Alpha Maxx is a dynamic extended reach tool for drilling applications to aid in the elimination of stick-slip and maintain ROP during today’s long three and four mile lateral drilling. Compatible with modern MWD systems and utilizing an activation mechanism, the MAXX can be brought online at a desired time, keeping rig infrastructure free of damaging vibration and ensuring the well is TD’d at consistent ROP.
Design Features
- Allows for longer laterals while increasing the rate of penetration
- Compatible with measure while drilling systems
- Increases the transmission of weight on bit
- Ball drop for on demand activation to reduce damage to the drilling rig infrastructure
Technical Specifications
| Parameter | Imperial | Metric |
| Outside Diameter | 5.25″ | 133.4mm |
| Activation Ball | 0.75″ | 19.1mm |
| Effective Length | 9.80′ | 3.0m |
| Flow Rate | 200-400 gpm | 0.8-1.5m³/min |
| Torsional Yield | 27 850 ft-lbf | 37 760 N-m |
| Tensile Yield | 776 400 lbf | 345 375 DaN |
| Operation Temperature | 300°F | 150°C |
| Operating Pressure | 800 psi | 5500 KPa |
| Operating Frequency | 5-11Hz | |
| Connection | DS40 | |
Surface Agitation
TEC’s Service Extended Reach Tool (SERT) is skid mounted and rigged into the high pressure treating iron between the pumping unit and the CT reel or rig. This tool can be selectively applied for corresponding phases of the operation when it is most desirable, and shut off when not required, making it the ultimate versatile addition to enhance traditional extended reach efforts for longer wells. This configuration also works superbly to complement snubbing applications where the SERT can aid in overcoming friction in the absence of pipe rotation, whenever such function is desired.
