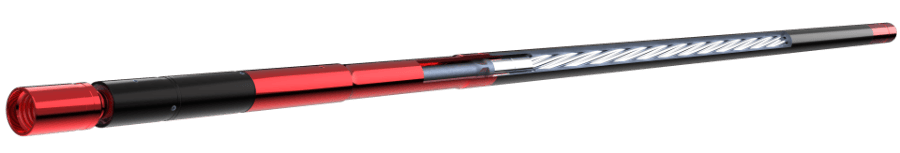

Predator Motor Line
TEC’s hydrocarbon-resistant Predator (1.69-2.88”), Brute Force (3.13”) & Hell Force EV (3.38” – 3.50”) series motors have the power, high flow rate, reliability & endurance required for single-trip milling in today’s deepest high-stage count applications with any fluid system. Built for reactive torque and harsh environments, our motors are the most durable on the market.
Technical Specifications
Technical Specifications
The product of thousands of hours of development, all TEC motor lines feature integrated flex sub and rotor catch, custom coatings, optimized bearings and top subs optimized for wear protection and ductility. Industry leading tensile and torsional strength can be expected when utilizing any TEC motor.
| Name | Size OD | Overall Length | Flow Range(Gal/minL/min) | Max Differential Pressure | Max Torque | Download spec sheet |
| 1.69” TEC Predator | 1.69”42.3mm | 8’8”2.68m | 20 – 40 GPM75 – 150 LPM | 550 psi3,792 kPa | 160 ft-lbs | Download |
| 2.13” TEC Predator | 2.13”54.0mm | 11’5”3.44m | 20 – 60 GPM75 – 225 LPM | 1,410 psi9,722 kPa | 341 ft-lbs | Download |
| 2.13” TEC Predator EVO | 2.13”54.0mm | 11’6”3.51m | 25 – 125 GPM95 – 475 LPM | 610 psi4,206 kPa | 640 ft-lbs | Download |
| 2.88” TEC Predator | 2.88”73.0mm | 13’2”4.03m | 50 – 168 GPM190 – 636 LPM | 1,100 psi7,584 kPa | 771 ft-lbs | Download |
| 2.88” TEC Predator EV | 2.88”73.0mm | 14’1”4.30m | 75 – 215 GPM284 – 815 LPM | 952 psi6,564 kPa | 933 ft-lbs | Download |
Brute Force Motor Line
Extreme Velocity motors allow high flow for high annular velocities. By increasing the flow rate and decreasing the rotations per gallon (litre) we are able to adjust motor RPM while keeping rate constant.
Technical Specifications
Technical Specifications
| Name | Size OD | Overall Length | Flow Range(Gal/minL/min) | Max Differential Pressure | Max Torque | Download spec sheet |
| 3.13” TEC Brute Force EV | 3.13”79.4mm | 13’5”4.11m | 108 – 251 GPM410 – 950 LPM | 610 psi4,206 kPa | 1,200 ft-lbs | Download |
| 3.13” TEC Brute Force EVO | 3.13”79.4mm | 14’4.27m | 100 – 290 GPM380 – 1,110 LPM | 710 psi4,895 kPa | 1,201 ft-lbs |
Hell Force Motor Line
Extreme Velocity Opti-Fit motors are the TEC flagship flawless power sections engineered to achieve the highest flow rates in thru tubing.
Technical Specifications
Technical Specifications
| Name | Size OD | Overall Length | Flow Range(Gal/minL/min) | Max Differential Pressure | Max Torque | Download spec sheet |
| 3.38” TEC Hell Force | 3.38”85.7mm | 13’5”4.11m | 108 – 251 GPM410 – 950 LPM | 610 psi4,206 kPa | 1,200 ft-lbs | Download |
| 3.38” TEC Hell Force EVO | 3.38”85.7mm | 14’4.27m | 100 – 290 GPM380 – 1,110 LPM | 710 psi4,895 kPa | 1,201 ft-lbs | Download |
Angler Motor Line
Angler fishing motors offer precision rotation for washover applications where standard power sections are ineffective.
Technical Specifications
Technical Specifications
| Name | Size OD | Overall Length | Flow Range(Gal/minL/min) | Max Overpull (*at bit) | Max WOB | Download spec sheet |
| 2.88” TEC Angler | 2.88”73.0mm | 8’3”2.53m | 50 – 150 GPM190 – 570 LPM | 67,000 lbf29,804 daN | 8,500 lbf3,781 daN | Download |
| 3.13” TEC Angler | 3.13”79.4mm | 8’9”2.71m | 100 – 210 GPM380 – 795 LPM | 75,000 lbf33,363 daN | 10,000 lbf4,448 daN | Download |
